See more. Do more.

Human-like vision for pick and place robotics.

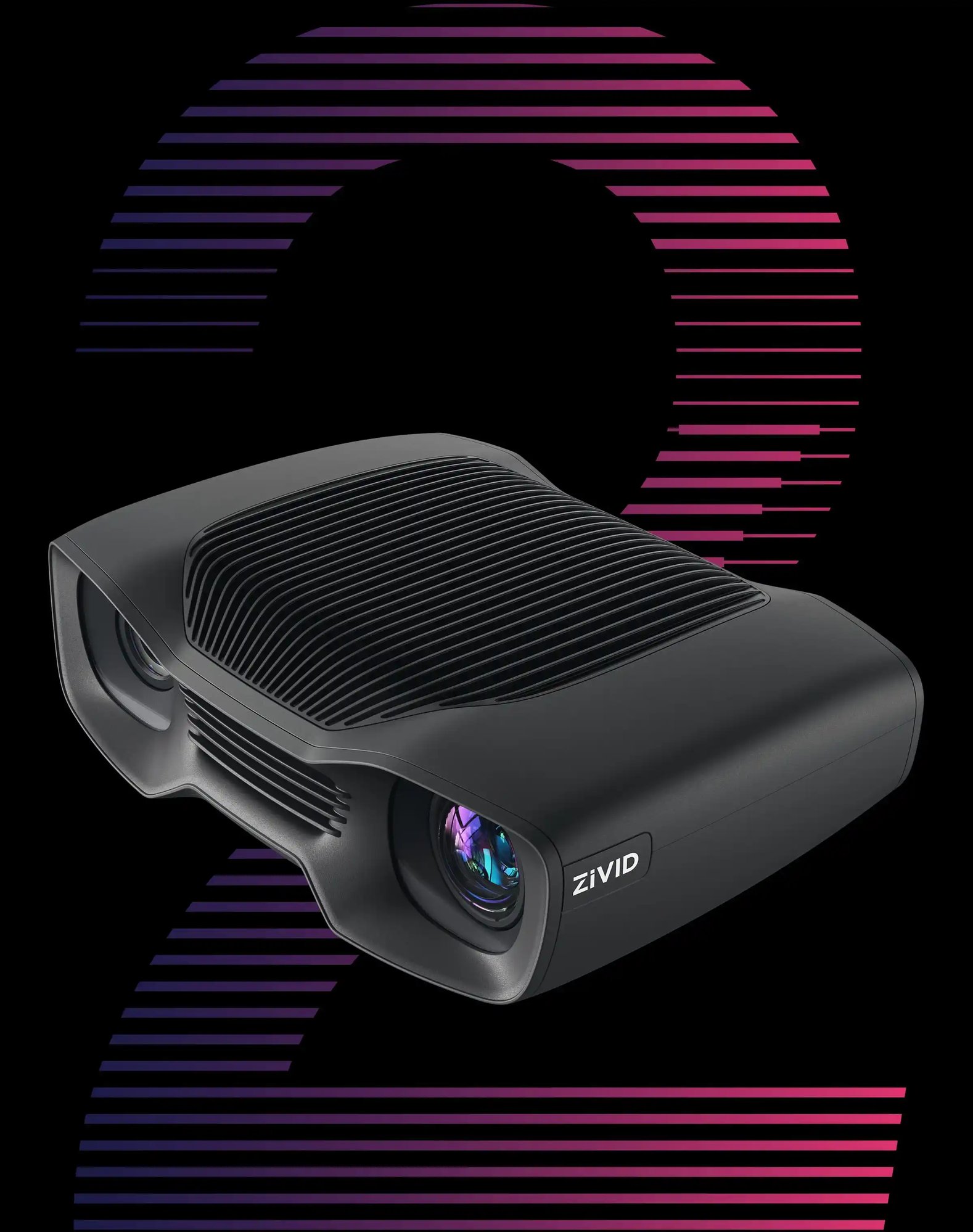

Zivid 2 gives you exceptional 3D image quality lightning fast in an ultra-compact form-factor. Design fast, reliable pick and place robots cells capable of handling a wide variety of challenging objects and scenes.

Get a quote  Datasheet

See with confidence

High quality, native color 3D point clouds for better object recognition.

See tiny objects and the fine details

High resolution and precision point clouds of even very small, densely packed or highly detailed objects. Distinguish features smaller than 5 mm.

2.3 Mpix
HD resolution

55 μm
Point precision

Minimal occlusion
112 mm baseline

3D point cloud of small and detailed objects. Better than stereo vision. Zivid

See reflective and shiny objects

Take images of traditionally challenging parts such as sheet metal, machined and polished parts, glossy packaging, semi-transparent and plastic wrapped objects. Excellent suppression of artifacts from reflections, interreflections, specular highlights and high contrast transitions.

Artifact Reduction Technology

High Dynamic Range

3D color point cloud of reflective metal and plastics. Better than laser sensors. Zivid.

See a wide variety of objects

The unique combination of native color and high dynamic range enables imaging of a broad range of objects. Plastic, ceramic, metal, cardboard, wood, colored, textured, light, dark and absorptive. Single or mixed SKU bin scenarios, densely stacked or randomly arranged.

Native colors

White light
Broad material coverage

See all objects with color 3D point clouds from Zivid.

Pick with confidence

True to reality 3D point clouds for more accurate and reliable grasping and manipulation.

Accurate picks and fine manipulation

Point clouds with true to reality representation of object size, rotation, and absolute position. Enables demanding pick and place operations and gives flexibility in choice of gripper.

< 0.2% at focus distance
Dimension trueness error

3D hand-eye calibration
10x more accurate

Less mispicks and crashes

Minimal trueness drift and variation across the full operating temperature range and under mechanical stress from handling and use.

Floating thermal calibration

Mechanical and thermal stability

Work faster

Improved cycle time with fast 3D point cloud captures.

<100 ms capture time

Low to medium dynamic range scenes. Wide variety of objects in all shades, except the darkest black and absorptive.

Point cloud examples captured with Zivid 2 3D camera at < 100 ms.

<300 ms capture time

High dynamic range scenes. Highly shiny and reflective, white and dark absorptive objects in the same scene.

Point cloud examples captured with Zivid 2 3D camera at < 300 ms.

<1s capture time

Extreme dynamic range scenes or longer working distances. Highly specular, chrome plated and mirror like. Objects positioned with steep angles away from the camera and super absorptive absolute black objects.

Point cloud examples captured with Zivid 2 3D camera at < 1000 ms.

Robot-mounted versatility

Unleashing the potential of end-effector mounting in pick-and-place robotics.

Robot mounted industrial 3D camera in bin-picking and cobot - Zivid

Unrestricted movement

Compact, lightweight and fast 3D camera for on-arm mounting for even smaller collaborative robots. Minimum impact on maneuverability, usable payload and cycle time.

169 x 122 x 56 mm
Palm sized

940 grams
Maximize robot maneuverability


60 ms
Minimize acquisition time

Palm-sized industrial 3D camera for robot mounting Zivid Two

Extended field of view

Leverage on-arm camera to cover larger bins, pallets and flow racks. Use a single on-arm camera for multiple bins or pallets.

Multi-view imaging

Capture images from multiple or different viewpoints to improve object recognition and reliably empty the bin.

Industrial grade

High performance 3D camera designed, manufactured and tested for demanding industrial applications.

Reliable operation

Rugged design ensuring reliable operation in harsh industrial environments.

  • Lightweight magnesium housing
  • Ruggedized all-glass optics
  • 15G shock & 5G sinusoidal
  • IP65 rating
  • 0° to 40°C operating temperature range

Consistent performance

Engineered and calibrated to deliver consistent high performance over the full operating temperature, camera settings and system configurations.

  • Floating calibration
  • Active cooling
  • 10 GigE Data connection
