Zivid One+ Medium
  • Fast
  • Accurate
  • High Definition + Color
  • 3D High Dynamic Range

Get a quote

FOV-ZOP-M
Range

0.6 m
2.0 m
Precision

0.06 mm
<1.0 mm
FOV

433 x 271 mm
1330 x 871 mm
Spatial

0.23 mm
0.75 mm

Zivid One Plus Medium is suitable for small to medium objects. The field of view covers typical objects on tables, in standard toes or bins, in picking, assembly, and control applications.

Get Pricing  Download Datasheet

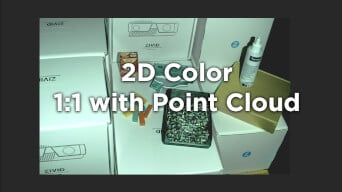

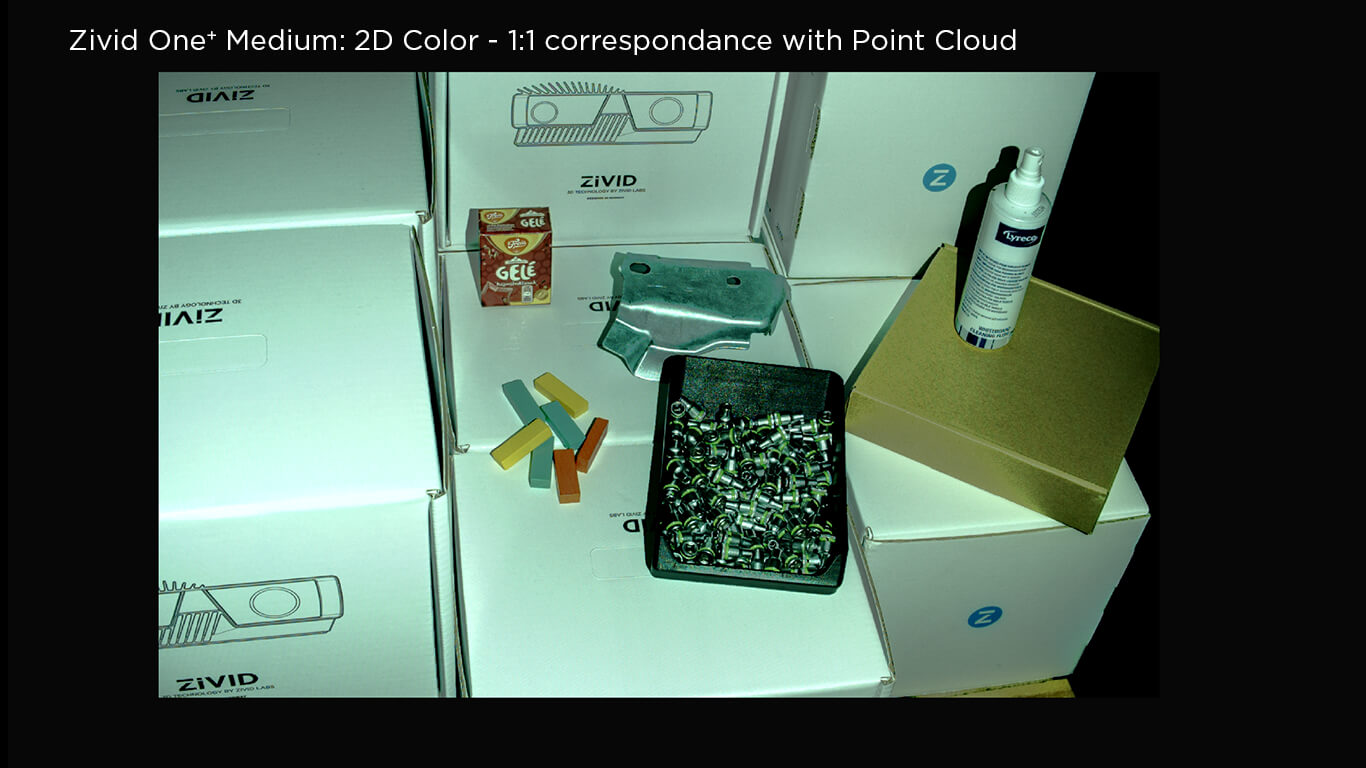

3D Point Cloud example

Zivid One Plus Medium
  • Product: Zivid One Plus Medium 3D camera
  • Distance: 80 - 150 cm
  • Scene: White cardboard, black and white plastic, colored wood, reflective metal pieces
  • Acquisition: 3D Color HDR merge
  • Source (25 MB): ZividOnePlusMedium.zdf

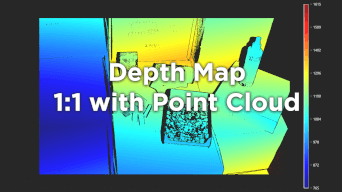

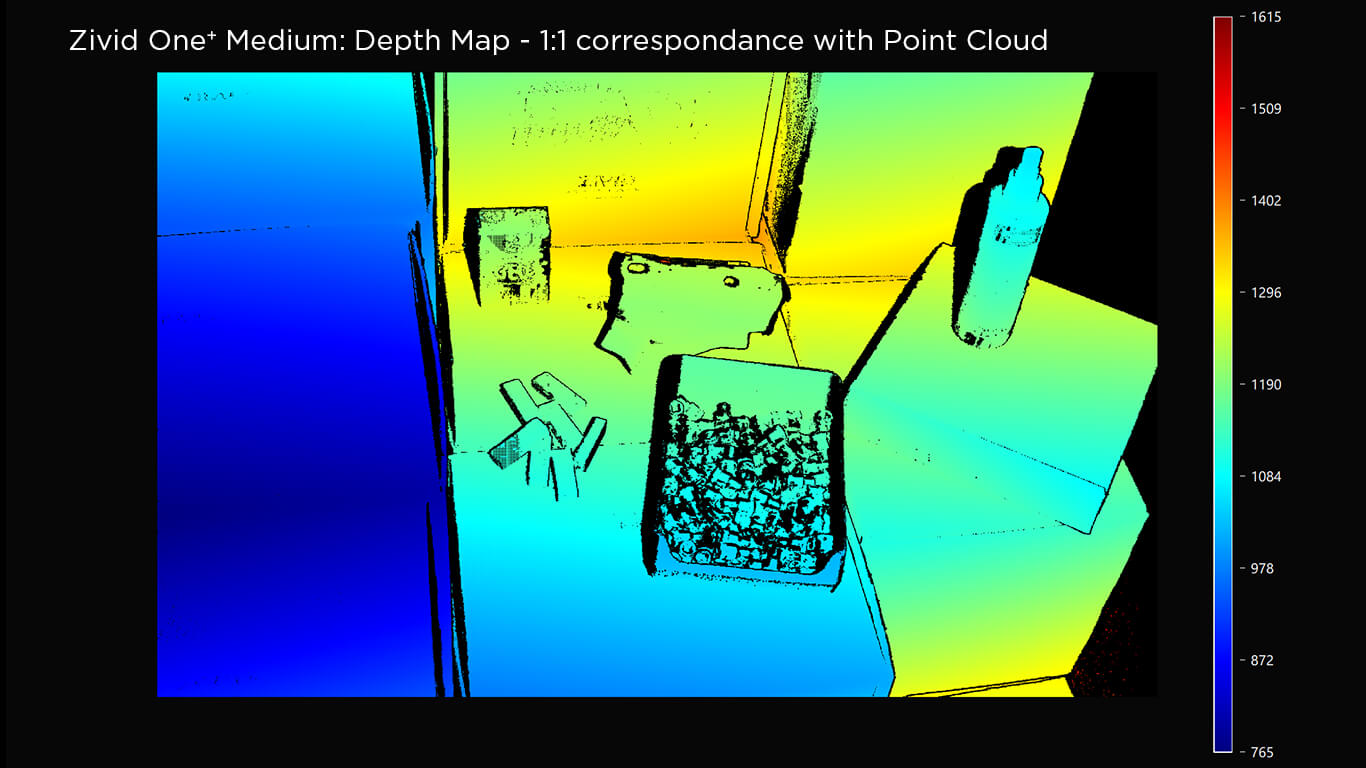

Zivid One Plus Medium Depth Map
Zivid One Plus Medium Depth Map

Technical Specifications

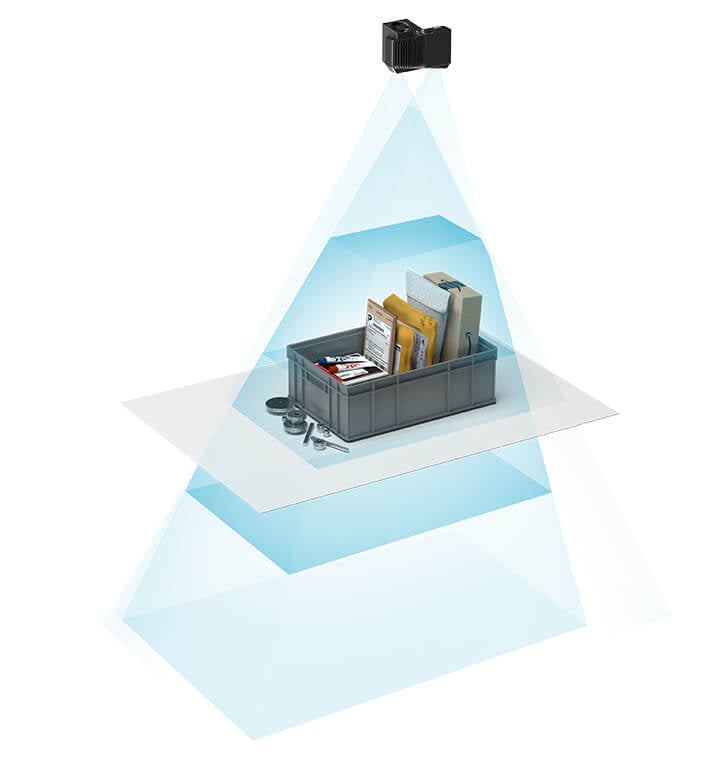

Field of View
Zivid-FOV-ZOP-M

Measurements in mm and º.

Additional info
Point precision
60 μm
Local planarity precision
90 μm
Global planarity trueness
90 μm
Global planarity accuracy
140 μm
Dimension precision
170 μm

Limitations

  • Moving objects
  • Transparent objects (e.g plastic bottles)
  • Highly reflective surfaces (e.g mirrors, polished metal)

Resources



What's included?
  • Zivid 3D Color Camera
  • 5m USB cable and power supply
  • 1:1 onboarding service
  • 2 year warranty

Got any questions?

Talk to one of our 3D vision experts!
